Stainless steel roller chain or stainless steel chain,compared with carbon steel roller chain, is suitable for corrosive conditions involving food,chemical pharmaceuticals,etc,and also suitable for high and low temperature conditions.The specification includes 06BSS-32BSS,25SS-160SS,A2040SS-A2162HSS,C2040SS-C2122HSS etc.And its material is stainless steel SUS 304.
European Standard Stainless Steel Roller Chains
1. BS/DIN Standard Stainless Steel Ultra Miniature Chains: 03BSS,04BSS
2. BS/DIN Standard Short Pitch Stainless Steel Roller Chains:05BSS-32BSS
3. BS/DIN Standard Short Pitch Stainless Attachment Chains:06BSS-32BSS
4. BS/DIN Straight Linkplate Stainless Roller Chains:C08BSS-C32BSS
5. BS/DIN Double Pitch Stainless Steel Transmission Roller Chains: 208BSS-232BLSS
6. BS/DIN Double Pitch Stainless Steel Conveyor Roller Chains: C208BSS-C224BLSS
7. Stainless Steel Anti Backbend Chains for Ventilation System: KSA,KSC,KSL,KSM
8. Stainless Steel Film Binding Chain
American Standard Stainless Steel Roller Chains
1. ANSI Standard Stainless Steel Micro Pitch Chains: 11SS,15SS
2. ANSI Short Pitch Stainless Steel Roller Chains: 25SS-160SS
3. ANSI Short Pitch Stainless Steel Attachment Chains: 25SS-160SS
4. ANSI Straight Linkplate Stainless Steel Roller Chains: C35S-C160SS
5. ANSI Heavy Duty Stainless Steel Roller Chains: 40HSS-240HSS
6. ANSI Double Pith Stainless Steel Transmission Roller Chains: A2040SS-A2162HSS
7. ANSI Double Pitch Stainless Steel Conveyor Roller Chains: C2040SS-C2122HSS
8. ANSI Double Pitch Conveyor Attachment Chains: C2040SS-C2122HSS
9. Short Pitch Stainless Steel Hollow Pin Chains: 08BHPSS-12BHPSS,40HPSS-80HPSS
10. Double Pitch Stainless Steel Hollow Pin Chains: C2040HPSS-C2082HPSS
11. Large Pitch Stainless Steel Hollow Pin Chains: MC,EC,ZC,FVH Series
12. Large Pitch Stainless Steel Solid Pin Conveyor Chain: ISO,BS,DIN or JIS
13. ANSI Stainless Steel Side Bow Chains: 08BSBSS-12BSBSS,35SBSS-80SBSS
14. ANSI Adapted Stainless Steel Chains: 40SS Sticker,40ss Tent
15. ANSI Engineering Plastic Chains: 40PC-60PC
16. ANSI Poly Stainless Steel Chains: 25PS-60PS
17. One Piece Stainless Steel Table Top Chains (Flat Top Chains, Slat Band Chains): SS815,SS881,SS881T
18. Two Piece Stainless Steel Table Top Chains:SS884,SS1684,SS1874
19. Stainless Steel Silent Chains (only 3/16" stainless steel silent chain)
20. Stainless Steel Leaf Chains (both AL and BL/LH stainless steel leaf chain)

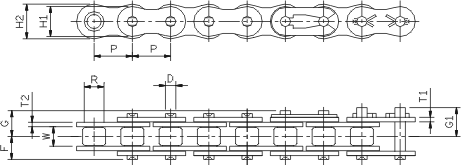

In the form,we have listed the techinical data for the main specification.
| CHAIN NO. | Pitch | Width | Roller | Plate | Pin | Max Allowable Load kgf |
Approx Weight kg/m |
|||||||
| P | W | Dia | Height | Thickness | Dia | Lengths | ||||||||
| inch | mm | mm | R | H1 | H2 | T1 | T2 | D | F | G | G1 | |||
| 25SS | 1/4" | 6.35 | 3.18 | 3.30 | 5.00 | 5.80 | 0.75 | 0.75 | 2.30 | 3.80 | 4.80 | --- | 12 | 0.14 |
| 35SS | 3/8" | 9.525 | 4.76 | 5.08 | 7.60 | 9.00 | 1.20 | 1.20 | 3.59 | 5.80 | 7.00 | 7.60 | 27 | 0.33 |
| 40SS | 1/2" | 12.70 | 7.94 | 7.92 | 10.20 | 11.80 | 1.50 | 1.50 | 3.96 | 8.25 | 9.35 | 10.10 | 45 | 0.63 |
| 50SS | 5/8" | 15.875 | 9.53 | 10.16 | 13.00 | 14.60 | 2.00 | 2.00 | 5.06 | 10.10 | 11.65 | 12.60 | 70 | 1.01 |
| 60SS | 3/4" | 19.05 | 12.70 | 11.91 | 15.50 | 17.50 | 2.40 | 2.40 | 5.95 | 12.50 | 14.15 | 15.40 | 105 | 1.44 |
| 80SS | 1" | 25.40 | 15.88 | 15.88 | 20.40 | 24.00 | 3.10 | 3.10 | 7.94 | 16.10 | 17.75 | 18.80 | 180 | 2.52 |
| 100SS | 1-1/4" | 31.75 | 19.05 | 19.05 | 24.80 | 30.10 | 3.90 | 3.90 | 9.52 | 20.10 | --- | 23.10 | 260 | 3.74 |
| 120SS | 1-1/2" | 38.10 | 25.40 | 22.23 | 30.00 | 35.00 | 4.70 | 4.70 | 11.10 | 25.20 | --- | 28.60 | 390 | 6.08 |
| C2040SS | 1" | 25.40 | 7.94 | 7.92 | 11.70 | 11.70 | 1.50 | 1.50 | 3.96 | 8.20 | 9.35 | 10.10 | 45 | 0.50 |
| C2042SS | 1" | 25.40 | 7.94 | 15.88 | 11.70 | 11.70 | 1.50 | 1.50 | 3.96 | 8.20 | 9.35 | 10.10 | 45 | 1,20 |
| A2040SS | 1" | 25.40 | 7.94 | 7.92 | 10.10 | 11.70 | 1.50 | 1.50 | 3.96 | 8.20 | 9.35 | 10.10 | 45 | 0.40 |
| C2050SS | 1-1/4" | 31.75 | 9.53 | 10.16 | 14.60 | 14.60 | 2.00 | 2.00 | 5.06 | 10.10 | 11.65 | 12.60 | 70 | 0.84 |
| C2052SS | 1-1/4" | 31.75 | 9.53 | 19.05 | 14.60 | 14.60 | 2.00 | 2.00 | 5.06 | 10.10 | 11.65 | 12.60 | 70 | 1.26 |
| A2050SS | 1-1/4" | 31.75 | 9.53 | 10.16 | 12.60 | 14.60 | 2.00 | 2.00 | 5.06 | 10.10 | 11.65 | 12.60 | 70 | 0.66 |
| C2060SS | 1-1/2" | 38.10 | 12.70 | 11.91 | 17.10 | 17.10 | 2.40 | 2.40 | 5.95 | 12.50 | 14.15 | 15.40 | 105 | 1.10 |
| C2060HSS | 1-1/2" | 38.10 | 12.70 | 11.91 | 17.10 | 17.10 | 3.10 | 3.10 | 5.95 | 14.10 | 15.70 | 16.60 | 105 | 1.37 |
| C2062HSS | 1-1/2" | 38.10 | 12.70 | 22.23 | 17.10 | 17.10 | 3.10 | 3.10 | 5.95 | 14.10 | 15.70 | 16.60 | 105 | 2.05 |
| C2080HSS | 2" | 50.80 | 15.88 | 15.88 | 23.00 | 23.00 | 3.90 | 3.90 | 7.94 | 17.90 | 19.40 | 20.80 | 180 | 2.41 |
| C2082HSS | 2" | 50.80 | 15.88 | 28.58 | 23.00 | 23.00 | 3.90 | 3.90 | 7.94 | 17.90 | 19.40 | 20.80 | 180 | 3.37 |
| 06BSS | 0.375" | 9.525 | 5.72 | 6.35 | 8.10 | 8.10 | 1.00 | 1.25 | 3.28 | 6.10 | 7.40 | --- | 27 | 0.39 |
| 08BSS | 0.5" | 12.70 | 7.75 | 8.51 | 10.20 | 11.80 | 1.50 | 1.50 | 4.44 | 8.20 | 9.50 | --- | 50 | 0.65 |
| 10BSS | 0.625" | 15.875 | 9.65 | 10.16 | 13.00 | 14.60 | 1.65 | 1.65 | 5.04 | 9.60 | 11.10 | --- | 66 | 0.92 |
| 12BSS | 0.75" | 19.05 | 11.68 | 12.07 | 16.00 | 16.00 | 1.80 | 1.80 | 5.65 | 11.10 | 12.60 | --- | 90 | 1.24 |
| 16BSS | 1" | 25.40 | 17.02 | 15.88 | 20.80 | 20.80 | 3.20 | 4.00 | 8.27 | 17.70 | 19.25 | 20.20 | 209 | 2.65 |
