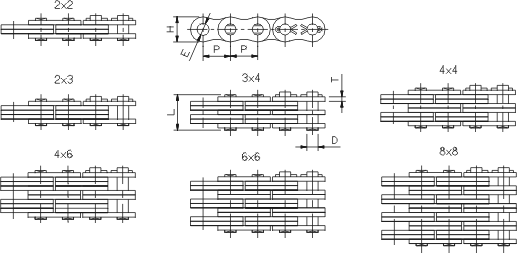

AL series leaf chain
| CHAIN NO. |
Lacing | Pitch P |
Plate | Pin | verage Ultimate Strength kgf |
Approx Weight |
||||
| Height | Hole | Thickness | Dia | Lengths | ||||||
| inch | mm | H | E(min) | T | D | L | ||||
| AL422 | 2 x 2 | 1/2" | 12.70 | 10.20 | 4.00 | 1.50 | 3.96 | 8.05 | 1800 | 0.36 |
| AL444 | 4 x 4 | 14.35 | 3600 | 0.71 | ||||||
| AL466 | 6 x 6 | 20.70 | 5400 | 1.22 | ||||||
| AL522 | 2 x 2 | 5/8" | 15.875 | 13.00 | 5.12 | 2.00 | 5.06 | 10.60 | 3100 | 0.63 |
| AL523 | 2 x 3 | 12.70 | 3100 | 0.78 | ||||||
| AL544 | 4 x 4 | 19.00 | 6200 | 1.23 | ||||||
| AL566 | 6 x 6 | 27.40 | 9300 | 2.10 | ||||||
| AL588 | 8 x 8 | 35.85 | 12400 | 2.46 | ||||||
| AL622 | 2 x 2 | 3/4" | 19.05 | 15.50 | 5.98 | 2.35 | 5.95 | 12.40 | 4400 | 0.90 |
| AL623 | 2 x 3 | 14.85 | 4400 | 1.12 | ||||||
| AL644 | 4 x 4 | 22.30 | 8800 | 1.78 | ||||||
| AL646 | 4 x 6 | 27.30 | 8800 | 2.25 | ||||||
| AL666 | 6 x 6 | 32.25 | 13200 | 3.03 | ||||||
| AL688 | 8 x 8 | 42.20 | 17600 | 3.6 | ||||||
| AL822 | 2 x 2 | 1" | 25.40 | 20.40 | 7.96 | 3.10 | 7.94 | 16.15 | 7600 | 1.48 |
| AL844 | 4 x 4 | 29.50 | 15200 | 2.92 | ||||||
| AL866 | 6 x 6 | 42.35 | 22800 | 4.97 | ||||||
| AL888 | 8 x 8 | 55.90 | 30400 | 5.78 | ||||||
| AL1022 | 2 x 2 | 1-1/4" | 31.75 | 24.80 | 9.56 | 3.90 | 9.52 | 21.11 | 11500 | 2.35 |
| AL1044 | 4 x 4 | 37.67 | 23000 | 4.61 | ||||||
| AL1066 | 6 x 6 | 54.23 | 34500 | 7.88 | ||||||
| AL1088 | 8 x 8 | 70.79 | 46000 | 9.23 | ||||||
| AL1222 | 2 x 2 | 1-1/2" | 38.10 | 30.00 | 11.14 | 4.70 | 11.10 | 24.60 | 15000 | 3.4 |
| AL1244 | 4 x 4 | 44.20 | 31000 | 6.65 | ||||||
| AL1266 | 6 x 6 | 63.80 | 46500 | 10.14 | ||||||
| AL1444 | 4 x 4 | 1-3/4" | 44.45 | 36.20 | 12.74 | 5.60 | 12.70 | 52.30 | 41000 | 10.34 |
| AL1466 | 6 x 6 | 75.60 | 62000 | 15.16 | ||||||
| AL1644 | 4 x 4 | 2" | 50.80 | 41.40 | 14.31 | 6.40 | 14.28 | 59.55 | 54000 | 12.98 |
| AL1666 | 6 x 6 | 86.15 | 81000 | 19.41 | ||||||
| AL1688 | 8 x 8 | 112.75 | 108000 | 25.84 | ||||||
Any other enquiry than above spec. is welcomed.
