Chain Descriptions and Dimensions

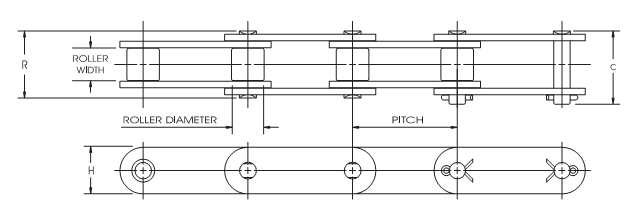

Double-Pitch Conveyor Roller Chain

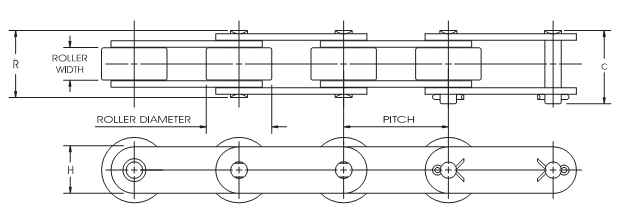

Produced to ASME/ANSI B29.4,these chains are used in conveyor applications when loads are low and speeds are moderate.They are similar to the Double-Pitch Power Transmission chains,but with link plates that have an oval contour,and can produced with either standard or over-sized rollers.They are most ofter found working on conveyors of all shapes and sizes and can be supplied with one or more of our many attachments to carry or convey products.
