Cotter type chain

Cotter type chain is different from riveted type chain.It is the cottered construction.For example,the specification is expressed like this:50-C,60-C,and 80-C etc.The word “C” stand for cotter.

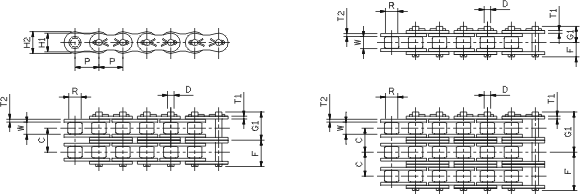

CHAIN NO.	Pitch		Width	Roller	Plate				Pin			Transverse Pitch	Average Ultimate Strength kgf	Approx Weight kg/m
	P		W	Dia	Height		Thickness		Dia	Lengths		Transverse Pitch
	inch	mm	mm	R	H1	H2	T1	T2	D	F	G1	C
50-C	5/8"	15.875	9.53	10.16	13.00	14.80	2.00	2.00	5.06	10.10	12.60	---	3100	1.01
50-2C	5/8"	15.875	9.53	10.16	13.00	14.80	2.00	2.00	5.06	19.20	21.10	18.10	6200	2.04
50-3C	5/8"	15.875	9.53	10.16	13.00	14.80	2.00	2.00	5.06	28.30	30.20	18.10	9300	3.05
50H-C	5/8"	15.875	9.53	10.16	13.00	14.80	2.40	2.40	5.06	10.90	12.90	---	3100	1.12
50H-2C	5/8"	15.875	9.53	10.16	13.00	14.80	2.40	2.40	5.06	20.65	22.75	19.60	6200	2.25
60-C	3/4"	19.05	12.70	11.91	15.50	17.50	2.40	2.40	5.95	12.50	15.40	---	4400	1.44
60-2C	3/4"	19.05	12.70	11.91	15.50	17.50	2.40	2.40	5.95	24.00	26.90	22.80	8800	3.03
60-3C	3/4"	19.05	12.70	11.91	15.50	17.50	2.40	2.40	5.95	35.35	37.65	22.80	13200	4.50
60H-C	3/4"	19.05	12.70	11.91	15.50	17.50	3.10	3.10	5.95	14.10	15.70	---	4400	1.81
60H-2C	3/4"	19.05	12.70	11.91	15.50	17.50	3.10	3.10	5.95	27.20	29.70	26.11	8800	3.68
60H-3C	3/4"	19.05	12.70	11.91	15.50	17.50	3.10	3.10	5.95	40.20	42.70	26.11	13200	5.20
80-C	1"	25.40	15.88	15.88	20.40	24.00	3.10	3.10	7.94	16.10	18.80	---	7800	2.40
80-2C	1"	25.40	15.88	15.88	20.40	24.00	3.10	3.10	7.94	30.60	33.60	29.30	15600	5.26
80-3C	1"	25.40	15.88	15.88	20.40	24.00	3.10	3.10	7.94	45.30	48.00	29.30	23400	7.80
80H-C	1"	25.40	15.88	15.88	20.80	24.00	3.90	3.90	7.94	17.90	20.80	---	8000	2.95
80H-2C	1"	25.40	15.88	15.88	20.80	24.00	3.90	3.90	7.94	34.20	37.10	32.59	16000	5.92
80H-3C	1"	25.40	15.88	15.88	20.80	24.00	3.90	3.90	7.94	50.50	53.40	32.59	24000	8.41
100-C	1-1/4"	31.75	19.05	19.05	24.80	30.10	3.90	3.90	9.52	20.10	23.10	---	11800	3.74
100-2C	1-1/4"	31.75	19.05	19.05	24.80	30.10	3.90	3.90	9.52	38.00	41.00	35.80	23600	7.51
100-3C	1-1/4"	31.75	19.05	19.05	24.80	30.10	3.90	3.90	9.52	55.90	58.90	35.80	35400	11.20
100H-C	1-1/4"	31.75	19.05	19.05	24.80	30.10	4.70	4.70	9.52	21.70	24.90	---	12000	4.45
100H-2C	1-1/4"	31.75	19.05	19.05	24.80	30.10	4.70	4.70	9.52	41.25	44.45	39.09	24000	8.34
100H-3C	1-1/4"	31.75	19.05	19.05	24.80	30.10	4.70	4.70	9.52	60.80	64.00	39.09	36000	12.72
120-C	1-1/2"	38.10	25.40	22.23	30.00	35.00	4.70	4.70	11.10	25.20	28.60	---	15500	6.18
120-2C	1-1/2"	38.10	25.40	22.23	30.00	35.00	4.70	4.70	11.10	47.90	51.30	45.40	31000	12.25
120-3C	1-1/2"	38.10	25.40	22.23	30.00	35.00	4.70	4.70	11.10	70.60	74.00	45.40	46500	18.30
120H-CP	1-1/2"	38.10	25.40	22.23	30.00	35.00	5.60	5.60	11.10	26.98	30.57	---	16000	6.78
120H-2C	1-1/2"	38.10	25.40	22.23	30.00	35.00	5.60	5.60	11.10	51.40	55.05	48.90	32000	13.45
120H-3C	1-1/2"	38.10	25.40	22.23	30.00	35.00	5.60	5.60	11.10	75.90	79.45	48.90	48000	20.13
140-CP	1-3/4"	44.45	25.40	25.40	36.20	42.00	5.60	5.60	12.70	27.30	31.50	---	21500	7.49
140-2C	1-3/4"	44.45	25.40	25.40	36.20	42.00	5.60	5.60	12.70	51.75	55.95	48.90	43000	14.83
140-3C	1-3/4"	44.45	25.40	25.40	36.20	42.00	5.60	5.60	12.70	76.20	80.40	48.90	64500	22.20
140H-C	1-3/4"	44.45	25.40	25.40	36.20	42.00	6.40	6.40	12.70	28.90	33.10	---	21500	8.12
140H-2C	1-3/4"	44.45	25.40	25.40	36.20	42.00	6.40	6.40	12.70	55.15	59.05	52.20	43000	16.10
140H-3C	1-3/4"	44.45	25.40	25.40	36.20	42.00	6.40	6.40	12.70	88.10	85.30	52.20	64500	24.02
160-C	2"	50.80	31.75	28.58	41.40	48.00	6.40	6.40	14.28	32.55	37.25	---	27500	10.10
160-2C	2"	50.80	31.75	28.58	41.40	48.00	6.40	6.40	14.28	61.80	66.50	58.50	55000	20.04
160-3C	2"	50.80	31.75	28.58	41.40	48.00	6.40	6.40	14.28	91.05	95.75	58.50	82500	30.02
160H-C	2"	50.80	31.75	28.58	41.40	48.00	7.20	7.20	14.28	34.15	38.85	---	27500	10.87
160H-2C	2"	50.80	31.75	28.58	41.40	48.00	7.20	7.20	14.28	65.10	69.80	61.90	55000	20.85
160H-3C	2"	50.80	31.75	28.58	41.40	48.00	7.20	7.20	14.28	96.05	100.75	61.90	82500	30.83
180-C	2-1/4"	57.15	35.71	35.71	46.70	54.20	7.20	7.20	17.45	36.50	42.20	---	36000	13.40
180-2C	2-1/4"	57.15	35.71	35.71	46.70	54.20	7.20	7.20	17.45	69.42	75.12	65.84	72000	26.20
180-3C	2-1/4"	57.15	35.71	35.71	46.70	54.20	7.20	7.20	17.45	102.34	108.04	65.84	108000	38.10
180H-C	2-1/4"	57.15	35.71	35.71	46.70	54.20	8.00	8.00	17.45	38.10	43.80	---	36000	15.20
180H-2C	2-1/4"	57.15	35.71	35.71	46.70	54.20	8.00	8.00	17.45	72.68	78.38	69.16	72000	30.10
180H-3C	2-1/4"	57.15	35.71	35.71	46.70	54.20	8.00	8.00	17.45	107.26	112.96	69.16	108000	45.00
200-C	2-1/2"	63.50	38.10	39.68	51.80	60.10	8.00	8.00	19.84	39.75	47.10	---	46000	16.50
200-2C	2-1/2"	63.50	38.10	39.68	51.80	60.10	8.00	8.00	19.84	75.55	82.85	71.60	92000	32.70
200-3C	2-1/2"	63.50	38.10	39.68	51.80	60.10	8.00	8.00	19.84	111.35	118.65	71.60	138000	49.05
200H-C	2-1/2"	63.50	38.10	39.68	51.80	60.10	9.50	9.50	19.84	42.75	50.05	---	52000	17.80
200H-2C	2-1/2"	63.50	38.10	39.68	51.80	60.10	9.50	9.50	19.84	81.91	89.20	78.31	104000	35.20
200H-3C	2-1/2"	63.50	38.10	39.68	51.80	60.10	9.50	9.50	19.84	121.06	128.36	78.31	156000	52.50
