Palm oil chain
Palm oil chain is also reffered as palm oil mill chain.It is widely used for palm oil industry.

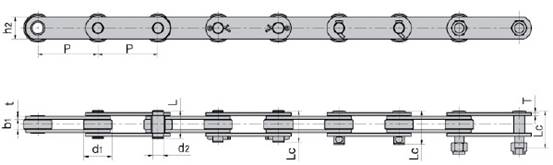

| Chain no. | Pitch | Roller Diameter |
Width Between Inner plate |
Pin Diameter |
Pin Length |
Plate depth |
Plate thickness |
Ultimate Tensile Strength |
Average Tensile Strength |
Weight Per Meter |
|
| p | D1 Max |
B1 min |
D2 Max |
L Max |
Lc max |
H2 | T | Q Min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | KN/LB | KN | Km/m | |
| P101.6F2 | 101.6 | 47.6 | 18.2 | 19.1 | 48.0 | 65.0 | 38.1 | 5.0 | 97.8/22000 | 107.58 | 6.75 |
| F152F14 | 152.4 | 47.6 | 18.2 | 19.1 | 48.0 | 52.5/50.5 | 38.1 | 5.0 | 89/20000 | 97.90 | 5.66 |
| F152F17 | 152.4 | 66.7 | 25.4 | 27.0 | 67.5 | 88.5 | 50.8 | 8.0 | 163.3/36000 | 179.60 | 12.83 |
| P152F29 | 152.4 | 66.7 | 25.4 | 27.0 | 69.5 | 111.5 | 50.8 | 9.0/8.0 | 200/45000 | 220.00 | 13.54 |
| 90R-S | 101.6 | 47.6 | 21.4 | 11.32 | ----- | 55.7 | 31.8 | 4.8 | 80.36/18070 | 88.40 | 5.90 |
| P101.6F64 | 101.6 | 50.8 | 30.0 | 14.50 | ----- | 69.0 | 38.1 | 6.3 | 132.7/29800 | 146.00 | 7.30 |
| P76.7 | 76.7 | 29.0 | 30.0 | 14.50 | ----- | 73.0 | 38.1 | 6.3 | 100/25000 | 110.00 | 8.25 |
| P152F31 | 152.4 | 88.9 | 38.1 | 31.80 | ----- | 98.5 | 61.0 | 10.0 | 266.72/60000 | 293.00 | 26.60 |
