Flat-top chain

Flat top Chain (Table top Chain) is manufactured as per ISO 4348 for continuous applications such as bottling, canning and packaging of beverages, food, drugs, chemicals and cosmetics, and for conveying machine parts. Flat-top chains are available in 304 stainless steel.And the main specification is C12S,C13S,C14S,C16S,C18S,C24S,C30S.

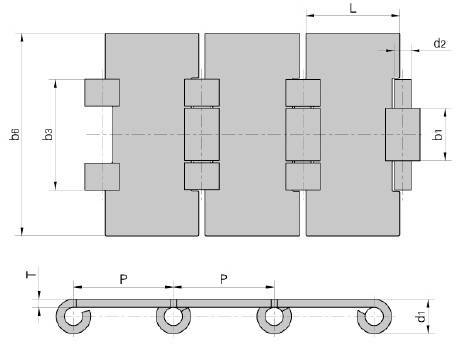

Chain no	p	B6 Max	D1 max	D2 Max	T Max	L	B1 max	B3 max	Ultimate tensile strength	Weight Per Meter
	mm	mm	mm	mm	mm	mm	mm	mm	KN max	KN max	Kg/m
C12S	38.1	76.2	13.13	6.38	3.35	37.28	20	42.05	8.00	6.25	2.39
C13S		82.6									2.55
C14S		88.9									2.70
C16S		101.6									2.99
C18S		114.3									3.29
C24S		152.4									4.17
C30S		190.5									5.06
