Side bow chain

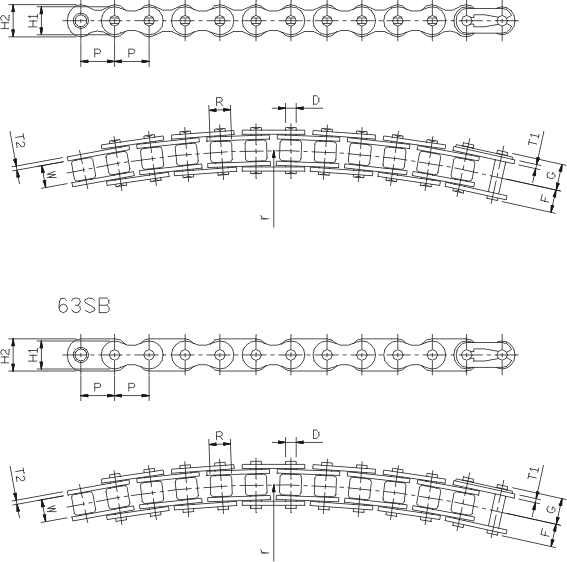

Side bow roller chains are extra-clearance chains with the ability to permit side flexing and twisting. We exports side bow roller chains from 35SB to 80SB and 08BSB and 10BSB, which are specially designed for the curved conveyor application on bottling, packaging, canning, and conveying machinery. They are made of the same high quality materials and specifications, and undergoes the same manufacturing processes and precision finishing as ANSI standard roller chains. Stainless steel side bow roller chains and attachments for conveyor purpose are also available
| CHAIN NO. (ANSI) |
Pitch | Width | Roller | Plate | Pin | Min curve Radius |
Average Ultimate Strength kgf |
Approx Weight kg/m |
||||||
| P | W | Dia | Height | Thickness | Dia | Lengths | ||||||||
| inch | mm | mm | R | H1 | H2 | T1 | T2 | D | F | G | r | |||
| 35SB | 3/8" | 9.525 | 4.80 | 5.08 | 7.60 | 9.00 | 1.20 | 1.20 | 3.28 | 5.80 | 7.00 | 254 | 900 | 0.32 |
| 40SB | 1/2" | 12.70 | 7.94 | 7.95 | 10.20 | 12.00 | 1.50 | 1.50 | 3.86 | 8.10 | 9.10 | 350 | 1600 | 0.60 |
| 40NSB | 1/2" | 12.70 | 7.94 | 7.95 | 10.6 | 12.00 | 1.50 | 1.50 | 3.58 | 8.40 | 9.50 | 320 | 1300 | 0.5 |
| 50SB | 5/8" | 15.875 | 9.53 | 10.16 | 13.00 | 14.80 | 2.00 | 2.00 | 4.44 | 10.45 | 11.90 | 400 | 2200 | 0.99 |
| 63SB | 3/4" | 19.05 | 12.70 | 11.91 | 15.50 | 18.10 | 2.00 | 2.35 | 5.06 | 14.38 | 14.38 | 400 | 2700 | 1.39 |
| 63SBSS | 3/4" | 19.05 | 12.70 | 11.91 | 15.50 | 18.10 | 2.00 | 2.35 | 5.06 | 14.38 | 14.38 | 400 | --- | 1.39 |
| 603SB | 3/4" | 19.05 | 12.70 | 11.91 | 15.50 | 18.10 | 2.35 | 2.35 | 5.06 | 12.88 | 14.48 | 400 | 2700 | 1.46 |
| 60SB | 3/4" | 19.05 | 12.70 | 11.91 | 15.50 | 17.5 | 2.35 | 2.35 | 5.06 | 12.88 | 14.48 | 400 | 2700 | 1.40 |
* Rollerless chain, R indicates bushing diameter.
Stainless steel or special coating are supplied on request.
